Introduction to Antennas in Modern Wireless Communications

Antennas are essential components in wireless communication, enabling devices to send and receive data over radio frequencies. They convert electrical signals into electromagnetic waves, which travel through the air and are captured by other antennas to establish communication. In wireless networks such as GSM/UMTS Antennas, WLAN, Wifi Antenna, and WiMAX Wireless Access antennas are responsible for the transmission and reception of signals within the designated frequency ranges.

GSM/UMTS Antennas: A Backbone of Mobile Networks

GSM and UMTS networks rely on a range of antenna types to facilitate communication across large areas, supporting voice calls, messaging, and data transfer. These networks often use omnidirectional antennas for broad coverage and directional antennas for focused, high-intensity signal transmission.

1. Omnidirectional GSM/UMTS Antennas
   These antennas radiate signals uniformly in all horizontal directions, making them ideal for base stations that need to provide consistent coverage over a large area.

2. Directional GSM/UMTS Antennas
   Directional antennas, on the other hand, are used when there is a need to concentrate the signal in a specific direction, often for bridging gaps in coverage between cell towers or enhancing network reliability in high-traffic areas.

GSM/UMTS antennas come in various designs to optimize signal transmission depending on the geographical location, network requirements, and interference levels.

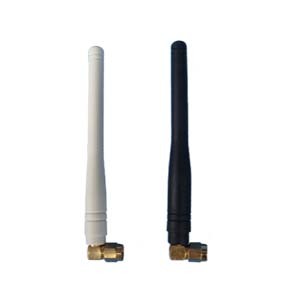

890-960MHz GSM Antennas VSWR≤2.0 with SMA Male Connector XMR-AC0001

WLAN and Wi-Fi Antennas: Enhancing Local Connectivity

Wi-Fi and WLAN networks often rely on both indoor and outdoor antennas to ensure strong connectivity within limited areas such as homes, offices, or specific public areas. The most commonly used Wi-Fi antennas include omnidirectional antennas, directional antennas, and patch antennas, each serving different needs based on the environment and desired signal reach.

Omnidirectional Wi-Fi Antennas

These antennas provide broad, circular coverage, making them suitable for most indoor applications where a 360-degree transmission is needed. They're ideal for use in routers and access points within homes or offices.

Directional Wi-Fi Antennas

With a focused, narrow beamwidth, directional Wi-Fi antennas are effective in extending signal range over specific areas. They are often used in point-to-point connections, where a strong, targeted connection is required, such as connecting two buildings within a campus network.

Patch and Panel Antennas for Wi-Fi

Patch antennas (or panel antennas) are typically wall-mounted and provide a more controlled, focused signal transmission compared to omnidirectional options. These antennas are often used in environments where precise coverage is necessary, like in corporate settings or public venues.

WiMAX Wireless Access Antennas for Extended Wireless Access

WiMAX antennas support extended wireless access over long distances, making them suitable for providing broadband connectivity in remote or underserved areas. WiMAX antennas can be sector antennas, directional antennas, or omnidirectional antennas, each chosen based on the desired coverage area and capacity.

Sector Antennas in WiMAX

These antennas cover a specific sector, often used in base stations to distribute WiMAX signals efficiently. Sector antennas are advantageous in urban or suburban settings, where a dense user base needs reliable access.

Directional and Omnidirectional WiMAX Antennas

Directional WiMAX antennas are particularly useful for focused coverage across longer distances, often employed in fixed wireless broadband services. Omnidirectional WiMAX antennas, by contrast, are deployed for broader, yet shorter-range applications, ensuring even coverage over circular areas.

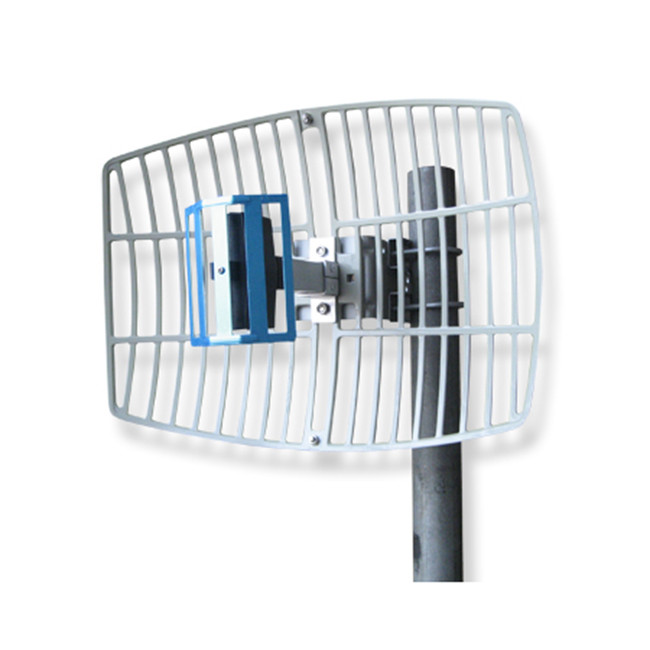

2500-2700MHz WiMAX Wireless Access Directional Antenna VSWR≤1.5 with N Female Connector XMR-WL081

Antenna Design Characteristics and Specifications

Each type of antenna varies in characteristics like gain, frequency range, polarization, and beamwidth. These specifications impact an antenna’s performance, with higher gain antennas typically delivering stronger signals and a narrower beamwidth focusing coverage in specific areas. These parameters influence how antennas perform across GSM, Wi-Fi, and WiMAX networks.

Installation Considerations for Different Antenna Types

For optimal antenna performance, it is essential to consider factors like location, height, and obstructions in the installation area. Indoor antennas generally require minimal installation compared to outdoor units, which need proper weatherproofing, grounding, and positioning to avoid signal loss due to obstacles or interference.

How to Choose the Right Antenna for Your Needs

Choosing the right antenna depends on network type, desired coverage area, and budget constraints. For instance, a GSM/UMTS network may prioritize omnidirectional antennas for general coverage, while WiMAX setups may benefit from sector antennas in specific regions.

Emerging Trends in Antenna Technology for Wireless Communications

Recent advancements in antenna technology have focused on enhancing bandwidth, improving efficiency, and supporting higher frequencies like 5G. These trends impact GSM, Wi-Fi, and WiMAX networks by enabling faster data rates and increased device capacity, pushing the boundaries of wireless communication technology.

Comparing GSM, Wi-Fi, and WiMAX Antennas: Which is Best for Your Network?

Each type of antenna has unique strengths, and choosing one depends on the specific requirements of the network. GSM/UMTS antennas excel in providing broad mobile network coverage, Wi-Fi antennas offer versatile indoor connectivity, and WiMAX antennas are ideal for wide-area broadband access.

Frequently Asked Questions about GSM, Wi-Fi, and WiMAX Antennas

What is the difference between Wi-Fi and GSM antennas?
GSM antennas are designed for mobile networks, while Wi-Fi antennas are used for local network coverage.

Can Wi-Fi antennas be used for GSM or WiMAX?
Typically, no. Each type is optimized for specific frequency ranges and protocols.

How does antenna gain affect signal strength?
Higher gain results in stronger signals but a narrower focus.

Which antenna type is best for outdoor Wi-Fi?
Directional or high-gain omnidirectional antennas are ideal for outdoor Wi-Fi setups.

What are the differences between directional and omnidirectional antennas?
Directional antennas focus signals in one direction, while omnidirectional antennas cover a 360-degree area.

How do I maximize my Wi-Fi signal with an antenna?
Use a high-gain antenna and minimize obstructions between the antenna and connected devices.

Conclusion: Selecting the Right Antenna for Your Wireless Network Needs

In conclusion, selecting the appropriate antenna is key to maximizing the performance of wireless networks. Whether for GSM/UMTS, Wi-Fi, or WiMAX, understanding the types of antennas and their characteristics can help in designing an efficient network tailored to specific connectivity needs.
