In today's world, seamless and fast wireless connectivity has become more essential than ever. Antennas play a crucial role in delivering high-speed data and improving coverage for mobile networks. In this guide, we'll explore three key types of antennas in modern communication technology: MIMO antennas, LTE antennas, and 3G antennas. Each technology brings unique features and benefits to enhance wireless communication.

Introduction to Wireless Antennas

Wireless antennas are essential components in mobile communication systems, enabling data to travel over the air between devices and network infrastructure. They come in different types and configurations, each designed to support various technologies and frequency bands. In this article, we’ll focus on three widely-used antenna technologies: 3g 4g antenna, 4g LTE antenna, and MIMO antenna 5g.

Understanding 3G Antenna

Basics of 3G Technology

3g antenna booster technology represented a significant leap in mobile communication, allowing for data speeds up to 2 Mbps. This technology supported multimedia messages, basic video calls, and mobile internet access that enabled web browsing and email.

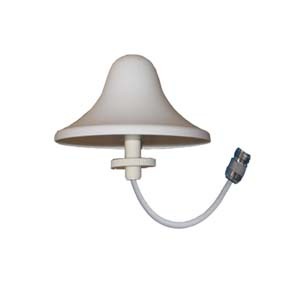

2500MHz 3G Antennas VSWR≤1.5 with N Female Connector RG58U XMR-AC0070

Design and Functions of 3G Antennas

3G antennas are designed to operate at frequencies that range typically between 800 MHz to 2100 MHz. The design focuses on ensuring reliable coverage and consistent connectivity, especially for voice and basic data services. 3G antennas are generally omnidirectional, ensuring a 360-degree field of coverage to reach users in various directions without the need for precise alignment.

Use Cases and Limitations

While 3G antennas are suitable for voice calls, texting, and some internet browsing, they are limited by the technology's relatively low data speeds compared to LTE and 5G. This makes them less suitable for modern data-intensive applications like video streaming or cloud gaming.

Introduction to LTE Antenna

Evolution from 3G to LTE

Long Term Evolution (LTE) was developed as a major upgrade from 3G, offering higher data speeds, lower latency, and a more robust connection. LTE technology enables a smoother, faster internet experience, supporting speeds up to 300 Mbps and becoming the foundation of 4G networks.

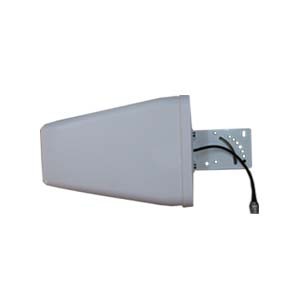

Top-tier LTE Antennas Gain 9dBi with N Female Connector XMR-AC0035

Benefits of LTE Antennas

LTE advanced antenna, often designed to work in multiple frequency bands, offer higher capacity, faster data transfer, and enhanced coverage. These antennas provide much-needed bandwidth for applications like video streaming, gaming, and real-time collaboration on mobile devices. LTE antennas are frequently sectorized to focus coverage in specific directions, which increases the overall data throughput.

How LTE Antennas Enhance Mobile Connectivity

LTE antennas are typically integrated with MIMO technology, which stands for Multiple-Input, Multiple-Output. By supporting multiple spatial streams, LTE antennas maximize data throughput and efficiency, a key advantage over 3G antennas.

The Role of MIMO Antennas in Modern Communication

What is MIMO Technology?

MIMO (Multiple-Input, Multiple-Output) is an advanced antenna technology that uses multiple transmitters and receivers on both the sending and receiving devices. This technology improves communication capacity and link reliability without requiring additional bandwidth.

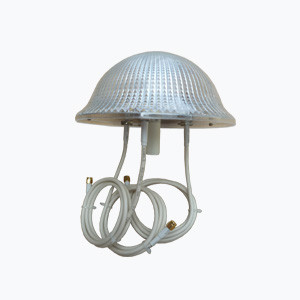

MIMO Antennas VSWR≤1.5 with SMA Connector Length 300mm XMR-AC0041

How MIMO Antennas Work

2.4 GHz MIMO antenna work by transmitting multiple signals over the same frequency band simultaneously, creating multiple pathways for data. By employing spatial multiplexing, these antennas can increase the data rate significantly, as each antenna operates as an independent transmission path.

MIMO in LTE and 5G Networks

In LTE and 5G networks, MIMO antennas are particularly effective. LTE networks commonly use 2x2 or 4x4 MIMO configurations, while 5G networks utilize even more complex setups like 8x8 or Massive MIMO, supporting dozens or even hundreds of antennas for a single base station.

Comparing MIMO, LTE, and 3G Antennas

Key Differences in Design and Functionality

• 3G Antennas: Simple design, mostly omnidirectional, for basic voice and data services.
• LTE Antennas: Support for higher frequencies, with focused sectors for enhanced data speeds.
• MIMO Antennas: Complex design, supporting multiple antennas to improve throughput and network efficiency.

Performance Metrics and Applications

Each type of antenna is optimized for specific performance metrics:

• 3G: Emphasizes coverage and consistency.
• LTE: Balances data speed with coverage.
• MIMO: Focuses on maximizing data rates and network capacity.

Benefits and Limitations of Each Antenna Type

When to Use 3G, LTE, or MIMO Antennas

• 3G Antennas: Ideal for areas with limited infrastructure or for devices that only require basic data and voice services.
• LTE Antennas: Suitable for high-data-use areas with demand for fast internet and multimedia applications.
• MIMO Antennas: Best for densely populated urban areas or large events where high capacity and speed are essential.

Innovations and Future of Antenna Technology

The development of 5G and beyond promises even more sophisticated antenna technologies, such as Beam forming and Massive MIMO, which will further improve coverage, speed, and efficiency. Future antennas are likely to include smart, adaptive capabilities that automatically optimize signal quality based on real-time environmental data.

FAQs

1. What is the primary advantage of MIMO antennas?
   MIMO antennas allow for multiple data streams, increasing overall data throughput and network reliability without requiring extra bandwidth.

2. Can LTE antennas be used for 5G networks?
   Some LTE antennas are compatible with 5G networks, especially those supporting higher-frequency bands, but many 5G applications require specialized antennas to achieve maximum performance.

3. How do 3G antennas differ from LTE antennas?
   3G antennas generally have simpler designs focused on coverage, while LTE antennas are designed for faster data speeds and often incorporate MIMO technology.

4. Why are MIMO antennas essential for LTE and 5G?
   MIMO antennas enhance data speed and capacity, which is crucial for supporting the high-bandwidth applications common in LTE and 5G networks.

5. Do LTE antennas work indoors?
   Yes, LTE antennas can work indoors, although external antennas may improve signal strength in areas with weak coverage.

6. What's the difference between MIMO and Massive MIMO?
   Massive MIMO is an advanced version of MIMO, typically used in 5G, that employs a larger array of antennas to further boost data capacity and coverage.




Conclusion

In summary, MIMO antennas, LTE antennas, and 3G antennas each offer unique advantages, tailored to specific needs within mobile communication networks. While 3G antennas remain effective for basic connectivity, LTE antennas offer significant improvements in data speed, making them ideal for most current applications. MIMO antennas, on the other hand, represent the pinnacle of performance, maximizing data capacity for high-demand areas and paving the way for next-generation 5G connectivity. As the demand for high-speed internet grows, the evolution of antenna technology will continue to be vital in delivering fast, reliable, and widespread wireless connectivity.
