In today's fast-paced digital world, antennas are essential components that allow seamless communication and connectivity across a range of devices and industries. From mobile phones to satellites, these devices rely on various antenna designs to transmit and receive signals effectively. This article will explore several key types of antennas-Patch Antennas, Built-in PCB Antennas, UAV Antennas, and GPS Antennas-highlighting their structure, applications, and importance in different fields.

What is a Patch Antenna?

A Patch Antenna, also known as a microstrip antenna, is a type of radio antenna that can be mounted on a flat surface. It consists of a flat, rectangular or circular conductive patch of metal, typically attached to a ground plane. This patch is separated from the ground plane by a dielectric substrate, which affects the antenna's performance in terms of frequency and bandwidth.

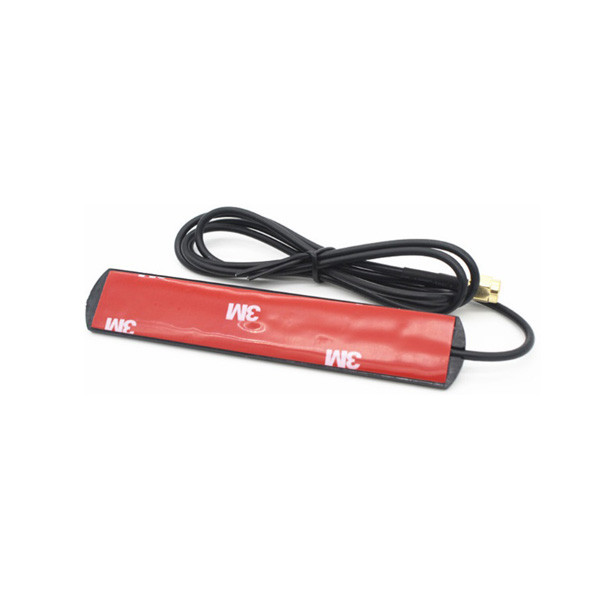

GSM/3G/4G/2.4G Patch Antenna Gain 5dbi VSWR≤1.5 with SMA Male Connector XMR-T001

Patch antennas are primarily used in applications where space is a concern, such as in mobile phones and other handheld devices. They are favored for their simplicity, low profile, and ease of fabrication.

Key Features of Patch Antennas

Patch antennas have a number of distinct features:

• Low profile and compact: These antennas are thin and can be placed on a surface without adding much bulk, making them ideal for compact devices.
• Directional radiation pattern: Patch antennas radiate energy primarily in one direction, which enhances their efficiency for focused signal transmission.
• Ease of manufacturing: Since they can be printed directly onto circuit boards, they are cost-effective and easy to produce in large quantities.

• Limited bandwidth: One drawback of patch antennas is that they typically have a narrow bandwidth, which limits their frequency range.

Patch Antenna Applications

Patch antennas are commonly used in:

• Telecommunications systems, where they transmit and receive signals for wireless communication.
• Wi-Fi routers and networking equipment, where their directional properties are ideal for connecting devices within a fixed area.

• Radar systems, especially in military applications where focused and reliable signal transmission is necessary.

Built-in PCB Antenna: An Overview

A Built-in PCB Antenna-Embedded Antenna is an antenna that is embedded directly onto a circuit board. Unlike external antennas, built-in PCB antennas are integrated into the internal structure of the device, offering a highly compact and streamlined solution. These antennas are often seen in modern consumer electronics, including smartphones, IoT devices, and wearable technology.

2.4G Built-in PCB Antenna Gain 5dbi 50mm with IPEX Connector XMR-P039

Benefits of Built-in PCB Antennas

Some of the main advantages of Built-in PCB Antennas include:

• Compact design: As they are embedded within the circuit board, there is no need for external antenna structures, which saves space and creates a sleek form factor.
• Cost-effectiveness: Since they are printed during the manufacturing process of the PCB, they reduce overall production costs.

• Reduced interference: Built-in PCB antennas are less prone to interference from external components due to their proximity to the device's internal circuitry.




Applications of Built-in PCB Antennas

You can find Built-in PCB Antennas in:

• Smartphones and tablets, where space is limited, and a low-profile antenna is essential.
• Bluetooth and Wi-Fi-enabled devices, such as speakers and smart home devices.

• Wearable tech like smartwatches, fitness trackers, and health monitoring equipment.

UAVs Antenna: The Role of Antennas in Drones

Unmanned Aerial Vehicles (UAVs), commonly known as drones, rely heavily on efficient and reliable antennas for communication and control. Whether it’s a commercial drone used for photography or a military UAV designed for reconnaissance, the role of the antenna is critical for transmitting real-time data, video feeds, and navigation signals.

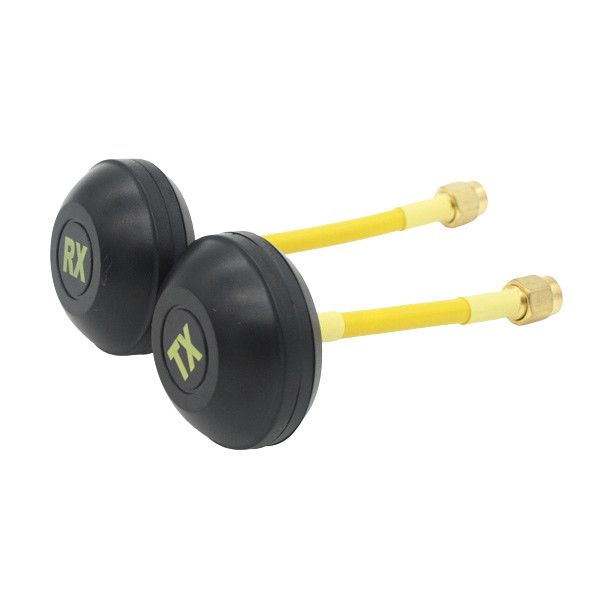

5.8G UAVs Antenna Gain 3dbi VSWR≤1.5 with SMA Connector XMR-M001

Types of UAVs Antennas

Drones use a variety of antenna types depending on their mission and range requirements. Some of the most common antennas used in UAVs include:

• Patch antennas, which are often used for their directional properties and compact design.
• Helix antennas, which provide broader coverage and are useful for long-range communication.

• GPS antennas, which are critical for providing accurate location data to the UAV's onboard navigation systems.

UAV Communication Challenges and Solutions

The main challenge for UAV antennas is ensuring a stable signal over long distances and through various types of interference. Line-of-sight communication is crucial for most UAVs, meaning the design and placement of antennas must be optimized to maintain connectivity with the ground control station. MIMO (Multiple Input, Multiple Output) technology, where multiple antennas are used to increase signal reliability and bandwidth, is often employed in UAV systems.

GPS Antenna: Enabling Precision Navigation

GPS antennas are critical for global positioning systems, enabling devices to receive signals from satellites for precise location tracking. These antennas are crucial for applications in aviation, automotive navigation, maritime travel, and smartphones.

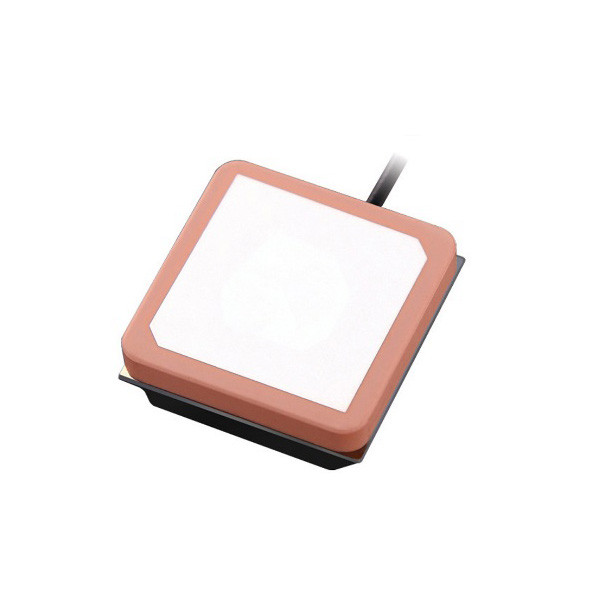

1575.42MHz GPS Internal Active Antenna Gain 30dbi VSWR≤1.5 with IPEX Connector XMR-G015

Types of GPS Antennas

There are several types of GPS antennas:

• Patch GPS Antennas: These are commonly used in portable navigation devices and drones due to their compact design.
• Helix GPS Antennas: Offering better signal reception from all directions, they are used in applications where the device may change orientation frequently.

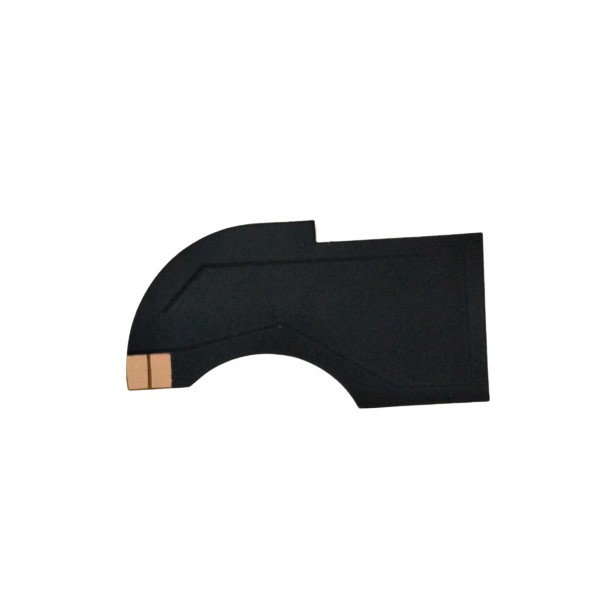

• Built-in PCB GPS Antennas: Found in compact devices such as smartphones and wearables, where space is at a premium.




GPS Antenna Applications

GPS antennas are used in:

• Smartphones, providing navigation services and location-based apps.
• Automotive GPS systems, where they guide drivers with turn-by-turn directions.
• UAVs, enabling precise location data for flight paths and mission control.

• Marine navigation systems, ensuring accurate positioning on the open sea.

Antenna Design Considerations

When designing antennas, several key factors must be taken into account to ensure optimal performance. These include:

• Frequency: The operational frequency of the antenna must match the application, whether it's for Wi-Fi, GPS, or communication systems.
• Impedance matching: Proper impedance ensures maximum power transfer between the antenna and the receiver/transmitter.

• Size and form factor: Especially important for patch antennas and built-in PCB antennas, the size of the antenna must align with the overall design constraints of the device.

Emerging Trends in Antenna Technology

The future of antenna technology is being shaped by emerging trends such as:

• 5G antennas: With the rollout of 5G networks, millimeter-wave antennas are being designed to handle higher frequencies and provide faster data rates.

• Smart antennas: Adaptive antennas can dynamically adjust their parameters to optimize signal strength and quality, which is especially important in UAVs and IoT applications.

Conclusion: Choosing the Right Antenna for Your Application

Selecting the appropriate antenna depends on a range of factors, including the application's frequency requirements, size constraints, and performance needs. For example:

• Patch antennas are ideal for compact devices with directional signal needs.
• Built-in PCB antennas offer a seamless solution for devices where space is limited.
• UAV antennas need to ensure reliable communication over long distances.

• GPS antennas provide precise location tracking, crucial for navigation.

In the rapidly evolving world of wireless communication, antennas continue to play a pivotal role, and understanding their design and functionality is key to making the right choice for any application.

FAQs About Antennas

What are patch antennas typically used for? Patch antennas are used in telecommunications, Wi-Fi, and radar systems due to their compact design and directional properties.

How does a built-in PCB antenna work? A built-in PCB antenna is embedded directly onto a circuit board, providing a low-profile solution for devices like smartphones and IoT products.

What type of antenna is best for UAVs? UAVs often use patch antennas, helix antennas, or custom-designed antennas to ensure reliable communication and GPS signal reception.

Why are GPS antennas important in smartphones? GPS antennas allow smartphones to receive satellite signals, enabling precise location services for navigation and location-based apps.

What challenges do UAV antennas face? UAV antennas must maintain stable communication over long distances, often in environments with interference or obstacles.

How are antennas evolving with 5G technology? With the rise of 5G, new antenna designs are emerging, particularly millimeter-wave antennas, to handle the increased frequencies and data speeds.
